Tutorial SA 2

Sometimes the power spectral density is to be estimated on specific epochs (e.g., experimental trials).

This tutorial uses the EXAMPLE_MI_1 Motor Imagery (MI) Brain-Computer Interface EEG file provided with Eegle and shows how to

1. read the MI example file (in NY format)
2. compute and average the spectra across trials for all MI classes
3. plot the spectra.

Tell julia the package to be used

    using Eegle, FourierAnalysis, CairoMakie

Load the example MI file by means of the readNY function of the Eegle InOut.jl module.

o = Eegle.readNY(EXAMPLE_MI_1)

Variable o holds an EEG structure with the data (o.X) and metadata, such as

• sampling rate: o.sr,
• trial duration: o.wl,
• sensor labels: o.sensors,
• class labels: o.clabels.

The file comprises trials from three classes, as it follows:

Next, create an utility function to extract the EEG data of the trials for a given sensor, for each class separately. For this, use the trials function of the ERPs.jl module.

A call to the following function will therefore generate a vector of three elements, one for each class, each one holding 20 vectors, one for each trial, each one holding the trial data at the sought electrode (e).

t(eeg, sensor) = trials(eeg.X, eeg.mark, eeg.wl;
                        shape=:byClass,
                        linComb=findfirst(==(sensor), eeg.sensors))

Compute power spectra for sensor "C3" and "Cz" at all trials and classes using:

• 1 Hz frequency resolution (the window length wl is set equal to the sampling rate)
• the Welch method (93.75% overlapping sliding wl-long windows)
• the default Harris4 tapering window.

wl = o.sr
C3S = [spectra(c, o.sr, wl; slide=o.sr÷16) for c ∈ t(o, "C3")]
CzS = [spectra(c, o.sr, wl, slide=o.sr÷16) for c ∈ t(o, "Cz")]

Now, compute the mean power spectra across trials, separately for each class, only from 1Hz to 36Hz. The bins in the spectra corresponding to these limits are found with the help of function f2b in package FourierAnalysis.jl.

minb = f2b(1, o.sr, wl)
maxb = f2b(36, o.sr, wl)
C3s = [mean(𝑠.y[minb:maxb] for 𝑠 ∈ s) for s ∈ C3S]
Czs = [mean(𝑠.y[minb:maxb] for 𝑠 ∈ s) for s ∈ CzS]

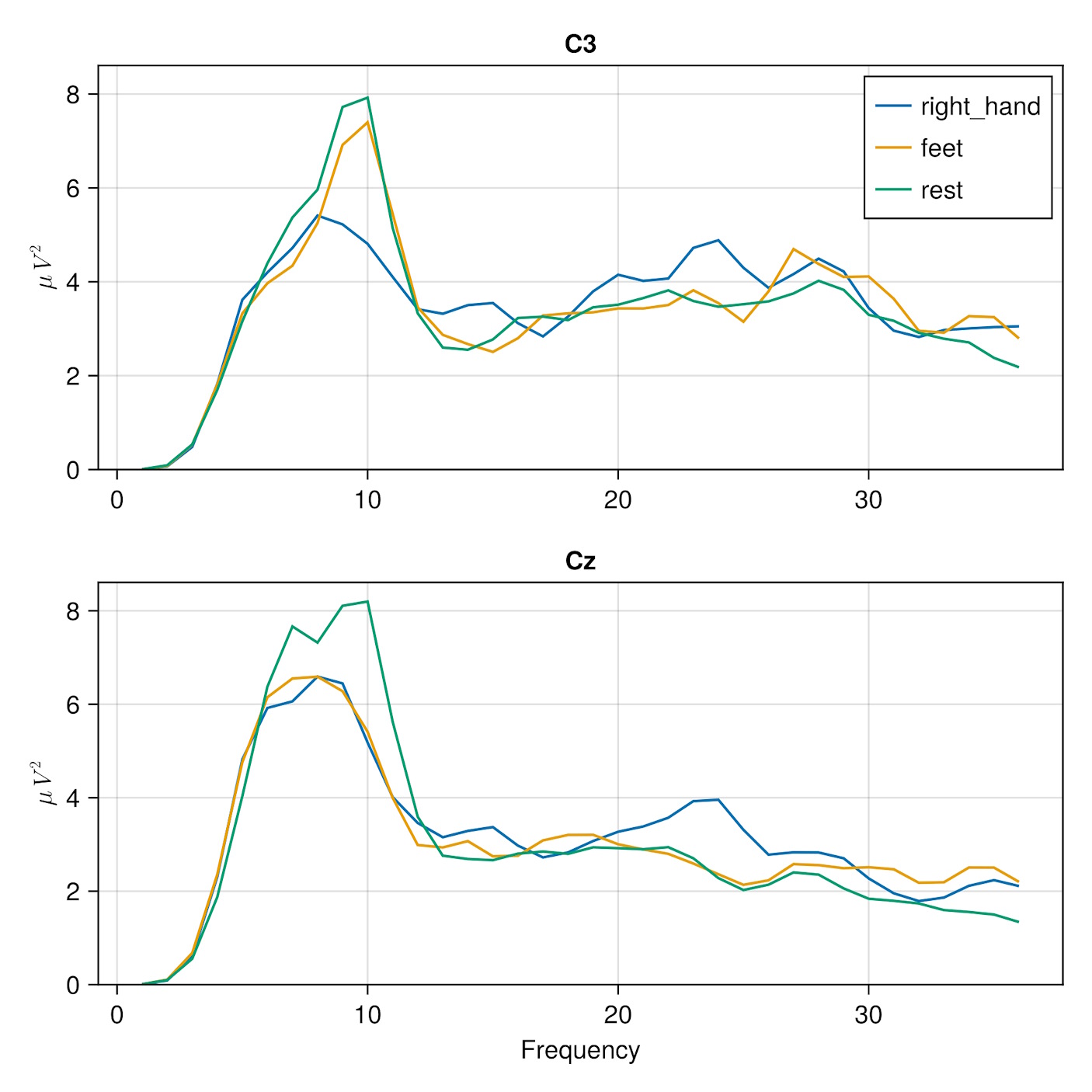

Plot the average power spectra in the three class for electrode "C3" and "Cz" separately.

begin
    fig=Figure(size=(600, 600))

    xt = Base.OneTo(maxb)
    m = maximum
    hiy = map(x->x+x*0.05, max(m(m.(C3s)), m(m.(Czs))))

    ax1 = Axis(fig[1, 1];
                title = "C3",
                limits=(nothing, (0, hiy)),
                ylabel =  L"\mu V^2")
    for i=1:3
        lines!(ax1, xt, C3s[i], label = o.clabels[i])
    end
    axislegend(ax1)

    ax2 = Axis(fig[2, 1];
            title = "Cz",
            limits=(nothing, (0, hiy)),
            xlabel = "Frequency",
            ylabel =  L"\mu V^2")
    for i=1:3
        lines!(ax2, xt, Czs[i], label = o.clabels[i])
    end

    fig
end

# save the figure at 300 pixels per inch
save("spectra.png", fig, px_per_unit = 300/96)

The expected ERD (Event-Related Desynchronization) related to right-hand movement imaging is expected to be better visible at electrode "C3", which is located near the contralateral sensorimotor cortex. The effect of the ERDs is seen as a lower power during "right hand' trials as compared to "rest" trials.

Similarly, the expected effect of the "feet" ERD is seen at midline electrode "Cz", which is the closest to the foot area of the sensorimotor cortex.
